DYNAMIXEL X-Series is a new line-up
of high performance networked actuator module,
which has been widely used for building multi-joint robots
with reliability and expandability.

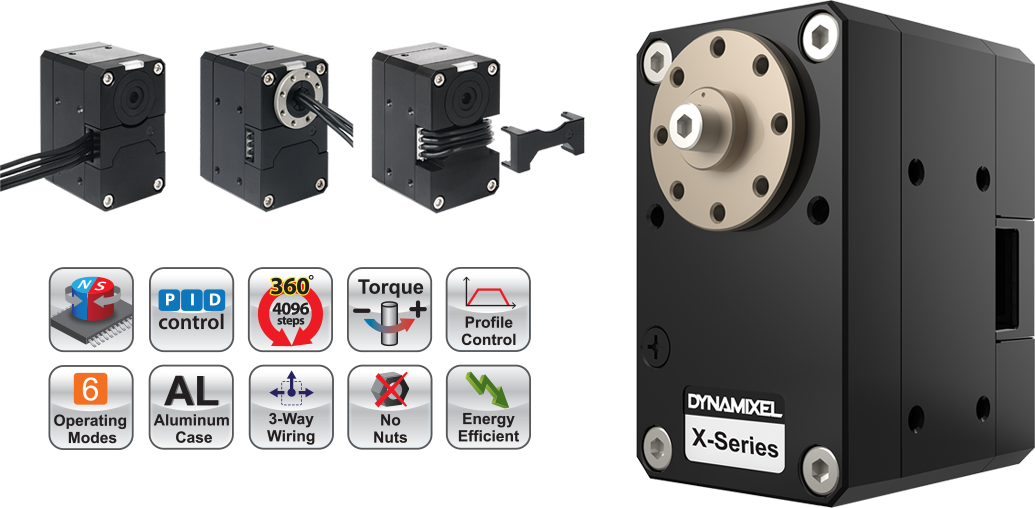

Basic Feature

  • ▪ Improved Torque, Compact Size
  • ▪ Enhanced Durability and Expandability
  • ▪ Hollow Back Case Minimizes Cable Stress (3-way-routing)
  • ▪ Direct Screw Assembly to the Case (without Nut Insert)
  • ▪ Improved Heat Sink Featuring an Aluminum Case

Various Control Functions

  • ▪ 6 Operating Modes
  • ▪ Current-Based Torque Control (4096 steps, 2.69mA/step)
  • ▪ Profile Control for Smooth Motion Planning
  • ▪ Trajectory Data and Moving Status (In-Position, Following Error, etc.)
  • ▪ Energy Saving (Reduced Current from 100mA to 40mA)

Sophisticated Control Architecture

  • ▪ Various feedback and control method according to developers’ needs
  • ▪ Protocol 2.0 provides reliable packet communication

New H/W Architecture

▪ Improved Torque, Compact Size


▪ Compact Design

▪ Direct Screw Assembly to the Case (without Nut Insert)


▪ Aluminum Case: Improved Heat Sink Featuring & Enhanced Durability


▪ Hollow Back Case Minimizes Cable Stress

▪ Cable cover can Prevention Cable Seperation


Development Environment

  • ▪ GUI version
      - RoboPlus Task 2.0
      - RoboPlus Motion 2.0
      - RoboPlus Manager 2.0
  • ▪ SDK 3.0
      - C(Win / Linux)
      - C++(Win / Linux)
      - Python
      - LabView
      - Matlab
      - JAVA
      - C#

Compatible Device

▪ PC + USB2Dynamixel


▪ Embedded Board
  - OpenCM Series
  - 3rd Party Board
