XM335-T323-T

11.1V / 1.03Nm / 53rpm / Coreless / RC Protocol / TTL

상품 선택옵션 0 개, 추가옵션 0 개

SKU 902-0216-000
Manufacturer ROBOTIS
Origin KOREA
Currency USD
Price $ 165.00

선택된 옵션

  • Quantity

상품 기본설명

Features
The XM335 model is a dedicated actuator for robotic fingers.

It supports a total of six control modes, including Current Control and Current-based Position Control, as well as the RC protocol, enabling efficient use in various applications.


*Caution: The recommended voltage is DC 11.1V, so please exercise caution during use.
*The XM335 series is a compact and lightweight product, making it easy to use in extremely narrow spaces.
*Durability has been reinforced through the application of metal gears and a metal case.

1.Various Operating Modes
Velocity Control, Position Control, Extended Position Control, PWM Control, Current Control, Current Based Position Control
2.Profile Control for Smooth Motion Planning
3.Input Voltage : 6.5V ~ 12.0V ( Recommended 11.1V)
4.Enhanced Durability by applying Metal Gear and Bearing
5.Support RC Protocol without additional converting device
6.Energy Saving with Reduced Current


Package Components

ItemQuantityDescription
XM335-T323-T1DYNAMIXEL
Robot Cable-X3P(HRS) 80mm1TTL 3p cable(HRS - HRS)
FHS_M2X061Bolts for horns
CHS_M1_7X0410Bolts for frames
PHS_M2X0414Bolts for frames

HORN

1

Horn for XM335


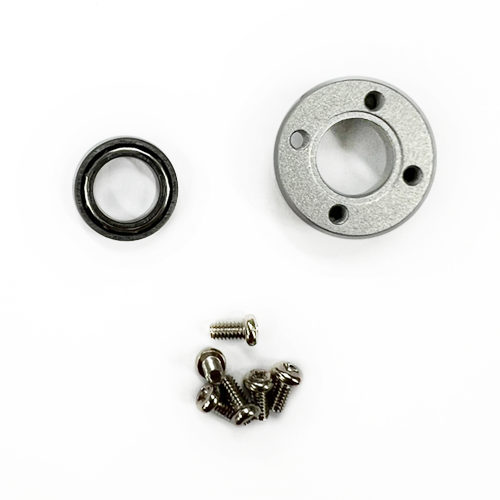

The idler set for hinge frame mounting is not included.


Compatible Products
Important Notes

Due to a change in the connector specifications for the XM335 cables, a 3P JST-HRS Conversion Board is required for connection to existing JST connector-based products, such as the U2D2, OpenCR1.0, and OpenRB-150.

※ The conversion board is scheduled to be available for separate purchase in February.

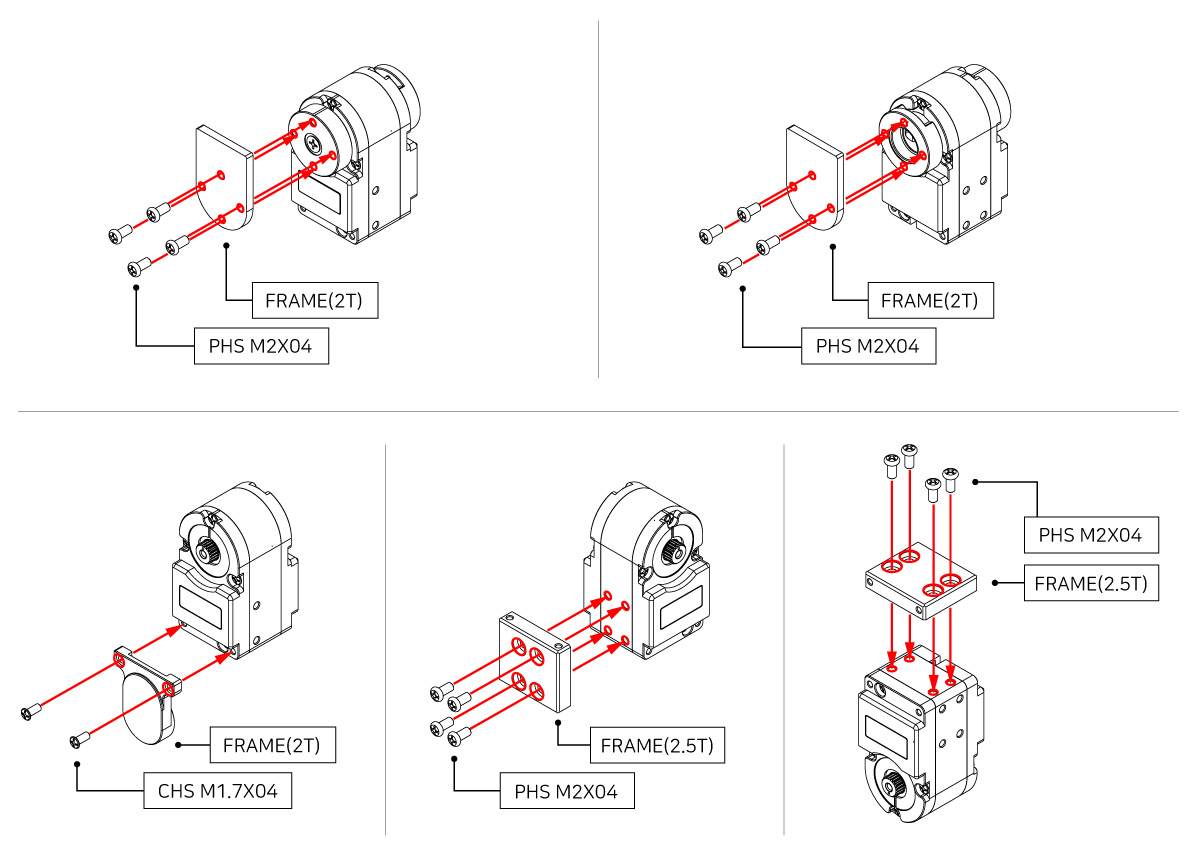

Installation Example
Specification

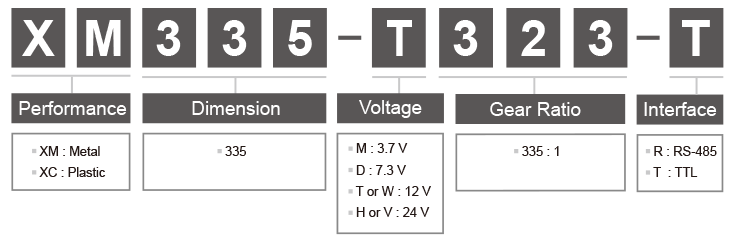

Model Name XM335-T323-T
Series DYNAMIXEL X
MCU ARM CORTEX-M0+ (64 [MHz], 32Bit)
Input Voltage Min. [V] 6.5
Recommended [V] 11.1
Max. [V] 12.0

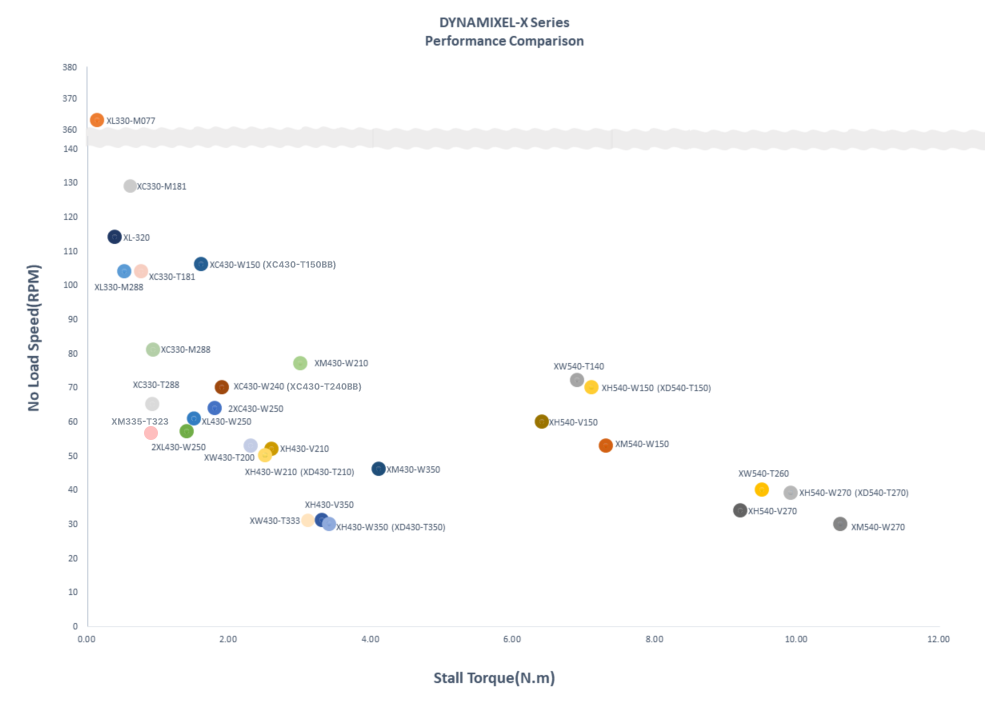

Performance Characteristics Voltage [V] 11.0
Stall Torque [N·m] 1.03
Stall Current [A] 0.8
No Load Speed [rpm] 53.0
No Load Current [A] -
Continuous Operation Voltage [V] -
Torque [N·m] -
Speed [rpm] -
Current [A] -
Resolution Resolution [deg/pulse] 0.0879000000
Step [pulse/rev] 4,096
Angle [degree] 360
Position Sensor Contactless absolute encoder (12Bit, 360 [deg]) Maker : ams(www.ams.com), Part No : AS5601
Operating Temperature Min. [°C] -5
Max. [°C] 70
Motor Coreless
Baud Rate Min. [bps] 9,600
Max. [bps] 4,000,000
Control Algorithm PID
Gear Type Spur
Gear Material Full Metal
Case Material Full Metal

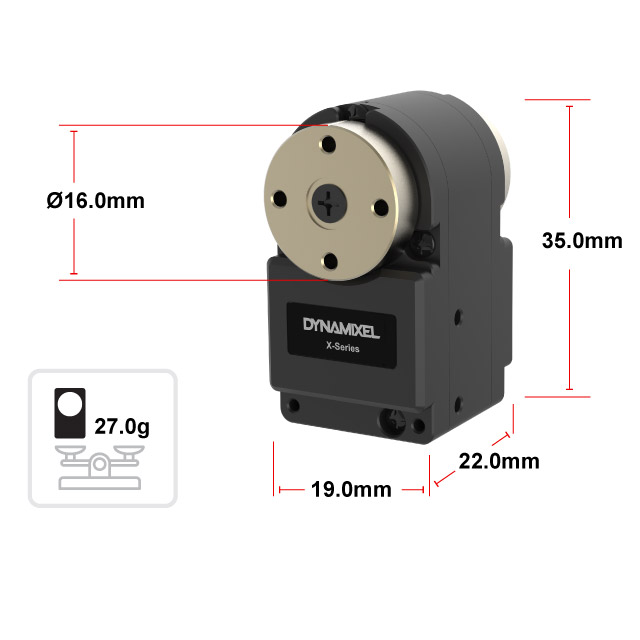

Dimensions (WⅹHⅹD) [mm] 19.0 x 35.0 x 22.0
Dimensions (WⅹHⅹD) [inch] 7.48 x 13.78 x 8.66
Weight [g] 27.00
Weight [oz] 0.95
Gear Ratio 323.04 : 1
Backlash [arcmin] -
Backlash [deg] -
Command Signal Digital Packet
Protocol Type Half duplex Asynchronous Serial Communication (8bit, 1stop, No Parity)
Link (Physical) TTL Level Multidrop Bus
ID 0 ~ 252
Feedback Position, Velocity, Current, Realtime tick, Trajectory, Temperature, Input Voltage, etc
Protocol version Protocol 2.0 Experimental S.BUS Experimental iBUS RC-PWM
Operating Mode / Angle Current Control mode:Endless turn Velocity Control mode:Endless turn Position Control Mode:360 [deg] Extended Position Control Mode:±256 [rev] Current-based Position Control Mode:±256 [rev] PWM Control Mode:Endless turn
Output [W] -
Standby Current [mA] 17
